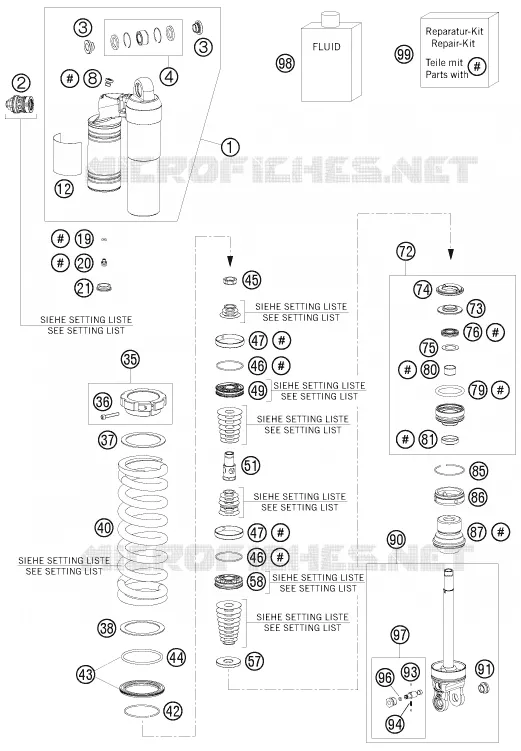

SCHOKBREKER (ONDERDELEN)
1
2
3
3
4
8
12
19
20
21
35
36
37
38
40
40
40
42
43
44
45
46
46
47
47
49
51
57
58
72
73
74
75
76
79
80
81
85
86
87
90
91
93
94
96
97
98
99
99
99
99
99
99
99
99
99
99
99
99
99
99
1
TOP PART CPL. M57,5X1 H30,5 10
50180733SA
224,40€ Stukprijs incl. btw
2
DCC-COMPR.DAMP.CONTROL CPL. 07
50180213S10
89,76€ Stukprijs incl. btw
3
Distance bush 12x15/18/24,5x10
46180007
9,00€ Stukprijs incl. btw
4
Ball joint bearing kit top 12m
R12012
53,94€ Stukprijs incl. btw
8
HS cylinder-head screw R1/8 l8
50180095
4,98€ Stukprijs incl. btw
12
Sticker WP PDS 62x100
52000085
5,64€ Stukprijs incl. btw
19
O-ring 5,28x1,78 NBR70 black
46810893
1,32€ Stukprijs incl. btw
20
HS lock screw M5x6
36120151
3,66€ Stukprijs incl. btw
21
Rubber cap do not open 22x5,5
46811208
4,74€ Stukprijs incl. btw
35
SPRING RETAINER M57,5X1+SCREW
50180520S
39,84€ Stukprijs incl. btw
36
HS cylinder-head screw M5x30
50180327
3,00€ Stukprijs incl. btw
37
INTERM.RING SCREW SPRING RET.
50180818
7,38€ Stukprijs incl. btw
38
Intermediate washer spring 61,
50180114
8,16€ Stukprijs incl. btw
40
SPRING 250 66 N/MM YELLOW
91210077S
110,16€ Stukprijs incl. btw
40
SPRING 250 69 N/MM YELLOW
91210078S
106,50€ Stukprijs incl. btw
40
SPRING 250 72N/MM(64/62)YELLOW
91210079S
110,16€ Stukprijs incl. btw
42
Round-wire snap ring 58,5x2
50180273
4,98€ Stukprijs incl. btw
43
SPRING RET. D=80 W. O-RING 05
50180463S
27,24€ Stukprijs incl. btw
44
O-ring 66,27x1,78 Viton70
50180352
4,26€ Stukprijs incl. btw
45
PISTON ROD NUT M20X1
50180627
13,92€ Stukprijs incl. btw
46
O-ring 44x,17x1,78 Viton70
50180099
4,26€ Stukprijs incl. btw
47
Piston ring 47,95x49,95x8
50180135
17,34€ Stukprijs incl. btw
49
PISTON D=20
50180675
39,84€ Stukprijs incl. btw
51
Tap setting 20x45,3
50180764
22,44€ Stukprijs incl. btw
57
Rebound disc 16x43x4 h0
50180970
17,34€ Stukprijs incl. btw
58
Piston 16,05x49,6x13,5 4,5/7
50180197
39,84€ Stukprijs incl. btw
72
Sealholder 50x28 cpl.
50180603S
48,30€ Stukprijs incl. btw
73
Washer 18,5x43,7x6
50180113
9,00€ Stukprijs incl. btw
74
Rubber pad rebound 27x48x8 NBR
50180107
5,82€ Stukprijs incl. btw
75
Shim 29,75x19x0,4
50180604
2,04€ Stukprijs incl. btw
76
Seal ring cpl. 18x30x5
50180605S
12,24€ Stukprijs incl. btw
79
O-ring 41x5 NBR70
50180103
1,86€ Stukprijs incl. btw
80
Guide bushing 18x20x12
46180119
7,38€ Stukprijs incl. btw
81
Dirt scarper NOK 18mm black
50180606
7,38€ Stukprijs incl. btw
85
Round-wire snap ring 53x1,75
50180126
4,98€ Stukprijs incl. btw
86
Cover 50x6 h16
50180626
27,24€ Stukprijs incl. btw
87
Rubber pad 17x58x59
50180600
22,32€ Stukprijs incl. btw
90
SHOCK ABS. LOWER PART CPL. 10
50180512SA2
259,38€ Stukprijs incl. btw
91
Threaded bush M12 d20
50180105
10,62€ Stukprijs incl. btw
93
Steel ball d3
40540603
2,64€ Stukprijs incl. btw
94
Spring (1,7) l7,9
48600028
4,32€ Stukprijs incl. btw
96
O-ring 4x1,5 NBR70
50180222
1,32€ Stukprijs incl. btw
97
ADJUSTING SCREW REBOUND TRAVEL
50180434S
23,70€ Stukprijs incl. btw
98
SHOCK ABSORBER FLUID 5 LT
50180751S1
110,58€ Stukprijs incl. btw
99
REPAIR KIT 5018 PDS 08
R12015
84,00€ Stukprijs incl. btw
De schema's zijn uitsluitend ter informatie. Bij twijfel staan onze specialisten klaar om uw vragen te beantwoorden. Let er bij het toevoegen van een onderdeel aan uw winkelwagen op dat u de gewenste hoeveelheid selecteert. De vermelde stukprijs geldt voor één exemplaar van elk onderdeelnummer.
