DYNAMO
9
9
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
20
21
22
22
23
24
25
26
27
1
HH collar screw M6x25 TX30
0025060256
1,98€ Stukprijs incl. btw
2
Ignition cover TE
24130102000JA
100,98€ Stukprijs incl. btw
3
electric starter assy.
51740001033
257,04€ Stukprijs incl. btw
4
Bushing cmpl.
51740002033
10,98€ Stukprijs incl. btw
5
Twin gear
51740014000
71,76€ Stukprijs incl. btw
6
Ignition wire
55639007100
42,48€ Stukprijs incl. btw
7
Spark plug
51739193000
20,82€ Stukprijs incl. btw
8
Sealing boot
51739091000
12,06€ Stukprijs incl. btw
9
HH collar screw M6x25 TX30
0025060256
1,98€ Stukprijs incl. btw
10
Iginition coil
55639006000
67,92€ Stukprijs incl. btw
11
PICKUP BRACKET
50439004010
12,06€ Stukprijs incl. btw
12
Stator
51739104000
265,20€ Stukprijs incl. btw
13
starter cable
51711059000
22,26€ Stukprijs incl. btw
14
HH COLLAR SCREW M 5X16 WS=6
0014050163
1,98€ Stukprijs incl. btw
15
AH SCREW DIN0912-M 5X30
0912050303
1,38€ Stukprijs incl. btw
16
Flywheel
51739105000
384,54€ Stukprijs incl. btw
17
O-ring, 23x1 NBR 70
0770230010
1,38€ Stukprijs incl. btw
18
Console cpl.
51740012033
32,52€ Stukprijs incl. btw
20
Bendix
50440026000
131,28€ Stukprijs incl. btw
21
GASKET IGNITION COVER
50430040000
12,72€ Stukprijs incl. btw
22
Needle roll.DIN5402 NRB 4X9.8
0402040980
1,56€ Stukprijs incl. btw
23
COLLAR BUSHING
55140030100
4,68€ Stukprijs incl. btw
24
Control device EFI
55641031000
488,10€ Stukprijs incl. btw
25
Holder control unit
55641030000
8,58€ Stukprijs incl. btw
26
HH collar screw M6x16 TX30
0025060166
1,98€ Stukprijs incl. btw
27
O-RING 25,00X3,00 NBR 70
0770250030
1,38€ Stukprijs incl. btw

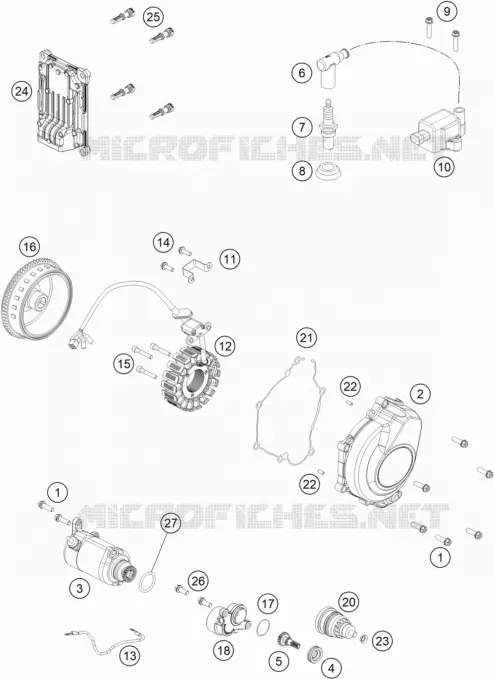

Op deze pagina vindt u het gedetailleerde schema DYNAMO HUSQVARNA. Met deze explosietekening kunt u de verschillende onderdelen identificeren die u nodig hebt om uw machine te onderhouden en snel het bijbehorende originele HUSQVARNA-artikelnummer terugvinden.


De schema's zijn niet bindend. Bij twijfel staan onze professionals voor u klaar om uw vragen te beantwoorden. Let er bij het toevoegen van een onderdeel aan uw winkelwagen op dat u de gewenste hoeveelheid bestelt. De weergegeven stukprijs is de prijs per referentie bij een hoeveelheid van 1.

Andere onderdelen voor TE 150 HERITAGE
