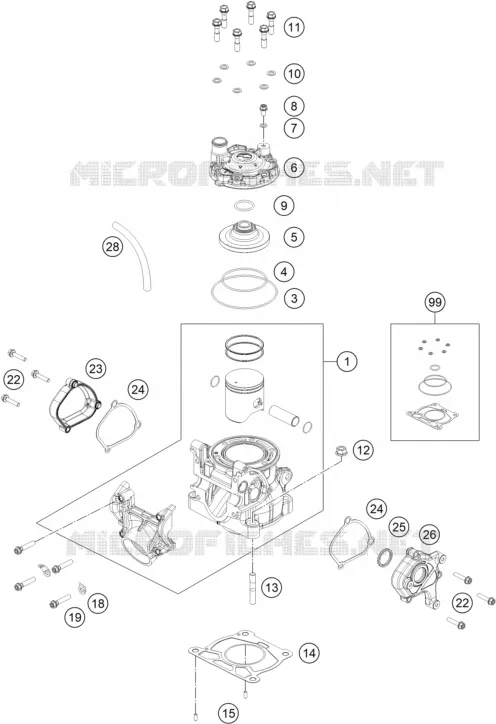

CILINDER / CILINDERKOP
1
3
4
5
6
7
8
9
10
11
12
13
14
14
14
14
14
15
18
19
22
22
23
24
24
25
26
28
99
29
30
31
32
33
34
1
cylinder + piston kpl. 125 MX
A42030038000
762,96€ Stukprijs incl. btw
3
O-RING 89X2 NBR 70 SH
0770890200
1,68€ Stukprijs incl. btw
4
O-RING 60X2 FPM 75SH
0770600200
3,42€ Stukprijs incl. btw
5
Combustion chamber insert
A42030060000
51,06€ Stukprijs incl. btw
6
Cylinder head
A42030006100
151,50€ Stukprijs incl. btw
7
CU-SEAL RING DIN7603-6X10X1
0603061001
1,44€ Stukprijs incl. btw
8
HH collar screw M6x10 TX30
0025060106
1,98€ Stukprijs incl. btw
9
O-RING 23,00X2,5 NBR 70 SH
07702300251
1,38€ Stukprijs incl. btw
10
CU-SEAL RING DIN7603- 7,3X12X1
0603070121
1,44€ Stukprijs incl. btw
11
CYLINDER HEAD SCREW
50430079000
3,42€ Stukprijs incl. btw
12
HH COLLAR NUT M 8 WS=12
50330045000
1,86€ Stukprijs incl. btw
13
STUD DIN 835 M8X32
0835080326
2,22€ Stukprijs incl. btw
14
Cylinder base gasket
A42030035020
9,36€ Stukprijs incl. btw
14
Cylinder base gasket
A42030035025
9,36€ Stukprijs incl. btw
14
Cylinder base gasket
A42030035030
9,36€ Stukprijs incl. btw
14
Cylinder base gasket
A42030035040
9,36€ Stukprijs incl. btw
14
Cylinder base gasket
A42030035050
9,36€ Stukprijs incl. btw
15
NEEDLE ROL.DIN5402 NRB 4X9,8
0402040980
1,56€ Stukprijs incl. btw
18
RETAINING PLATE
51005074000
2,64€ Stukprijs incl. btw
19
HH collar screw M6x25 TX30
0025060256
1,98€ Stukprijs incl. btw
22
HH COLLAR SCREW M5X25 ISA30
0025050256
1,98€ Stukprijs incl. btw
23
exhaust regulation cover rh
A42037007000
34,32€ Stukprijs incl. btw
24
Gasket, control lid left
A42037006000
8,04€ Stukprijs incl. btw
25
X-ring 21.89x2.62 FKM 70
0770002226200
2,88€ Stukprijs incl. btw
26
exhaust regulation cover lh
A42037005000
40,80€ Stukprijs incl. btw
28
Engine vent hose
A42030087000
24,24€ Stukprijs incl. btw
29
water temperature sensor
79435047000
32,40€ Stukprijs incl. btw
30
crank case pressure sensor
A45041075000
130,20€ Stukprijs incl. btw
31
Pressure sensor flange
A44041087000
19,80€ Stukprijs incl. btw
32
SCREW F. PLASTIC K60X20AL SW6
0017060206
1,98€ Stukprijs incl. btw
33
VARIABLE ONE-EAR CLAMP 21,0MM
00050210706
2,88€ Stukprijs incl. btw
34
Pressure sensor EPDM plate
A45041075050
4,98€ Stukprijs incl. btw
99
Sealkit Cylinder MX 125
A42030097000
32,70€ Stukprijs incl. btw
De schema's zijn uitsluitend ter informatie. Bij twijfel staan onze specialisten klaar om uw vragen te beantwoorden. Let er bij het toevoegen van een onderdeel aan uw winkelwagen op dat u de gewenste hoeveelheid selecteert. De vermelde stukprijs geldt voor één exemplaar van elk onderdeelnummer.
