door
FRAME
12
12
24
7
21
20
3
23
23
13
1
2
6
16
15
17
26
22
25
99
11
5
18
4
19
14
10
8
9
1
FRAME ''471M3'' 85 TC 2014
4710300100028
1 186,50€ Stukprijs incl. btw
2
SUB FRAME
47103002000
308,70€ Stukprijs incl. btw
3
Hexagon nut DIN934 M8
0934080003
1,14€ Stukprijs incl. btw
4
PLUG 37MM
54606004000
4,08€ Stukprijs incl. btw
5
Self locking nut M8 10.9
54310086200
2,04€ Stukprijs incl. btw
6
REINFORCING
47103013100
20,34€ Stukprijs incl. btw
7
HH collar screw M8x35 TX40
0025080356
3,24€ Stukprijs incl. btw
8
SUB FRAME APPLICATION LEFT
78103002010
9,66€ Stukprijs incl. btw
9
SUB FRAME APPLICATION RIGHT
78103002020
9,66€ Stukprijs incl. btw
10
Special Screw M8X26 WS=10
59001037000
3,00€ Stukprijs incl. btw
11
SELF LOCKING NUT M10 CU WS=14
54310086100
2,34€ Stukprijs incl. btw
12
FLAT HEAD SCREW M. ISA45 M8X20
0019080206S
3,72€ Stukprijs incl. btw
13
Engine bracket screw 85 SX
47003013000
9,06€ Stukprijs incl. btw
14
CABLE SUPPORT KHS NR.150-47610
58111076000
3,30€ Stukprijs incl. btw
15
FOOTREST CPL. 14
47103040033
83,28€ Stukprijs incl. btw
16
FOOTREST L/S
47103040000
31,02€ Stukprijs incl. btw
17
FOOTREST R/S
47103041000
31,02€ Stukprijs incl. btw
18
FOOTREST SPRING L/S & R/S
54603041000
4,20€ Stukprijs incl. btw
19
PIN FOR FOOT PED 51.5X9.8 MM
54803044000
9,00€ Stukprijs incl. btw
20
washer DIN 125 A 10.5
0125100003
1,02€ Stukprijs incl. btw
21
PIN DIN0094-3,2X25 STEEL
0094032253
1,02€ Stukprijs incl. btw
22
CHAIN SLIDING PIECE BELOW '97
51103053000
9,36€ Stukprijs incl. btw
23
LOCK WASHER 8MM
36003014000
1,98€ Stukprijs incl. btw
24
HH collar screw M8x30
0025080306
3,24€ Stukprijs incl. btw
25
BUSHING 8,2X10X20
51103053051
4,98€ Stukprijs incl. btw
26
ADH. FOIL TRANSP. 80X80 MM 04
50307012000
5,64€ Stukprijs incl. btw
99
CHAIN SLIDING KIT BELOW MINI
51103053110
22,32€ Stukprijs incl. btw

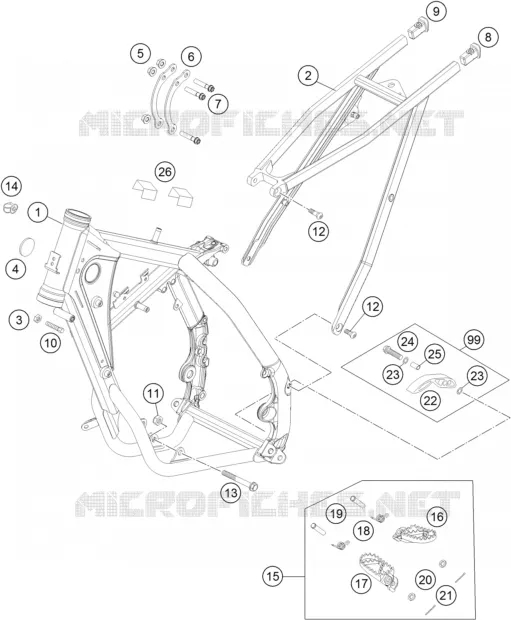

Op deze pagina vindt u het gedetailleerde schema FRAME HUSQVARNA. Met deze explosietekening kunt u de verschillende onderdelen identificeren die u nodig hebt om uw machine te onderhouden en snel het bijbehorende originele HUSQVARNA-artikelnummer terugvinden.


De schema's zijn niet bindend. Bij twijfel staan onze professionals voor u klaar om uw vragen te beantwoorden. Let er bij het toevoegen van een onderdeel aan uw winkelwagen op dat u de gewenste hoeveelheid bestelt. De weergegeven stukprijs is de prijs per referentie bij een hoeveelheid van 1.
